For industrial automation and HVAC professionals, the ComWinTop CWT-XYTH offers RS485 Modbus temperature and humidity transmission. Key features include 4-20mA output, a clear display, and easy wall or track installation. If you need a reliable, industrial-grade temp/humidity sensor, this is perfect.

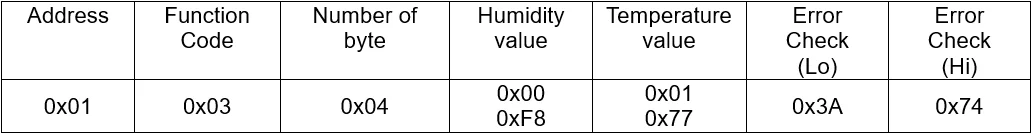

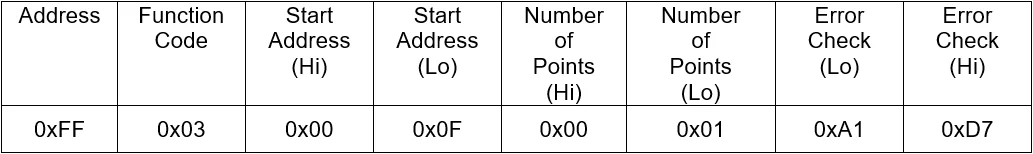

Sensor responds:







Product Description:

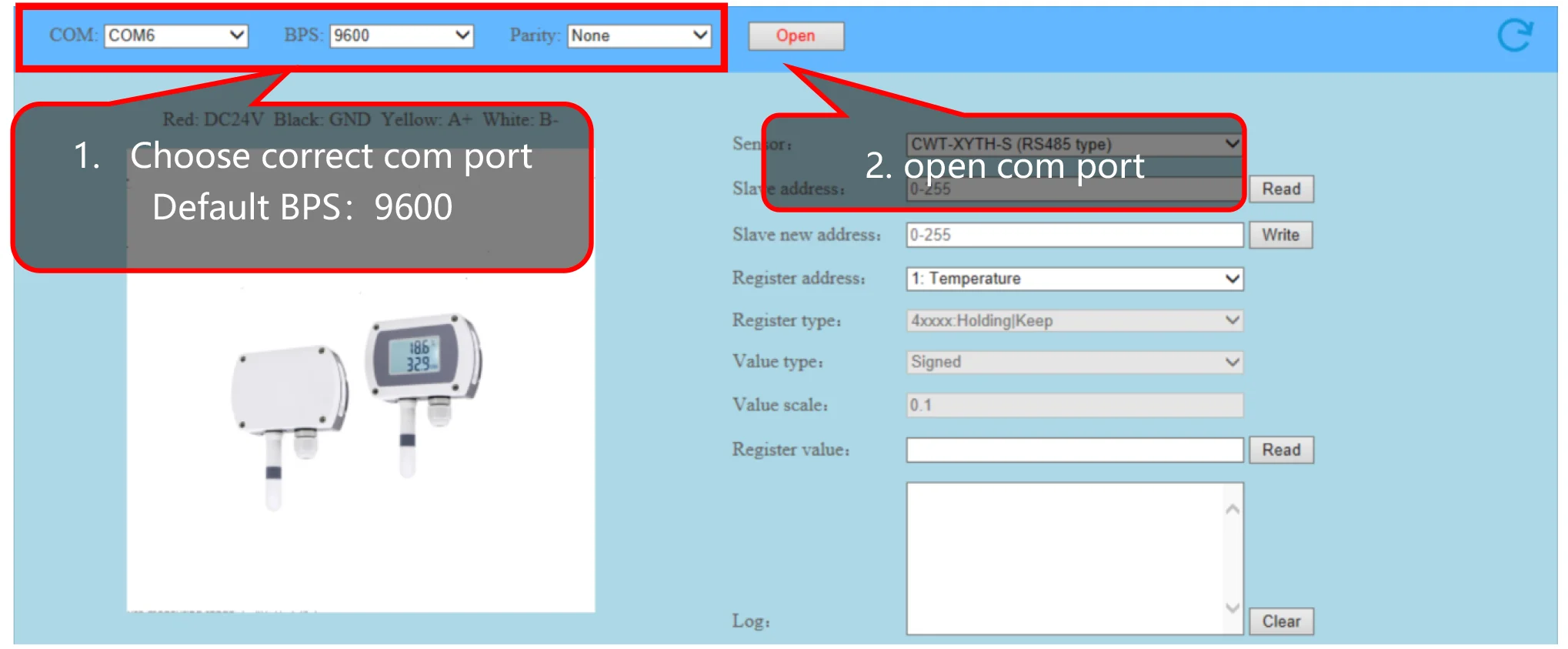

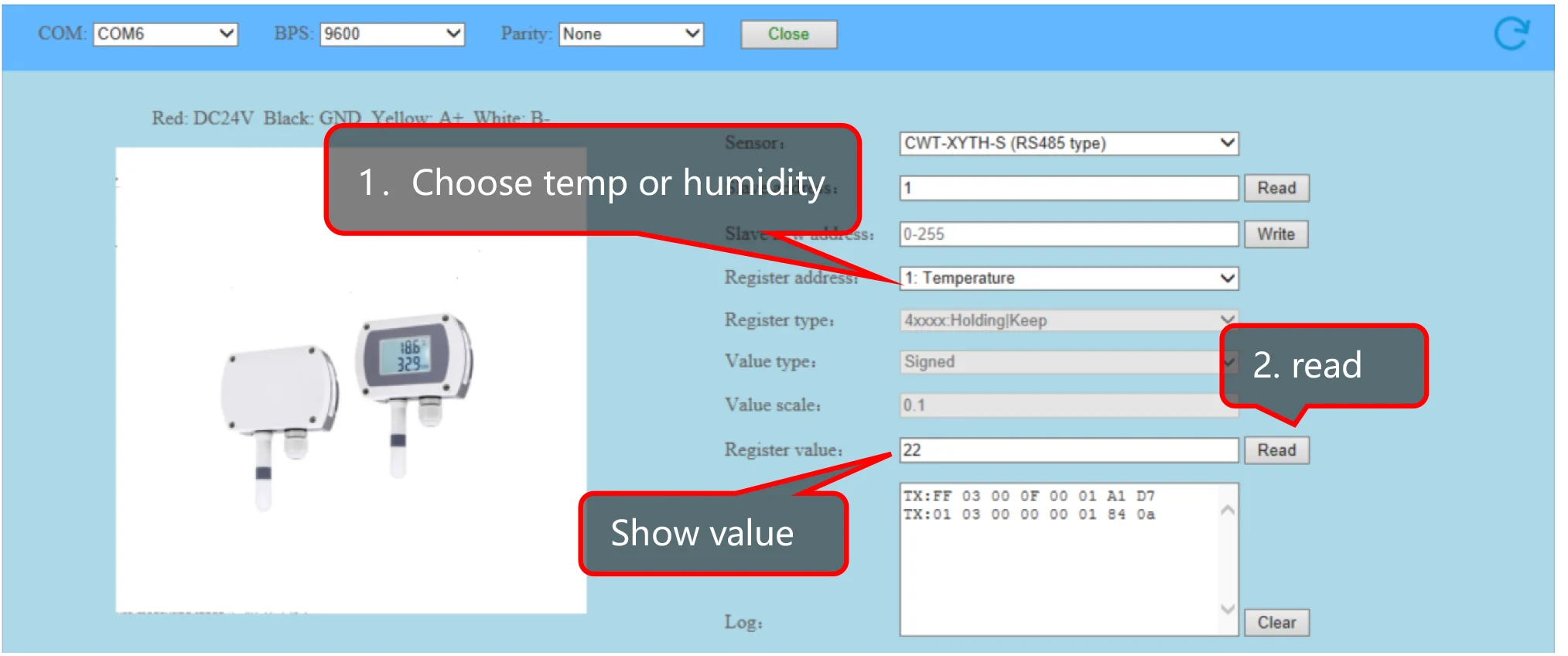

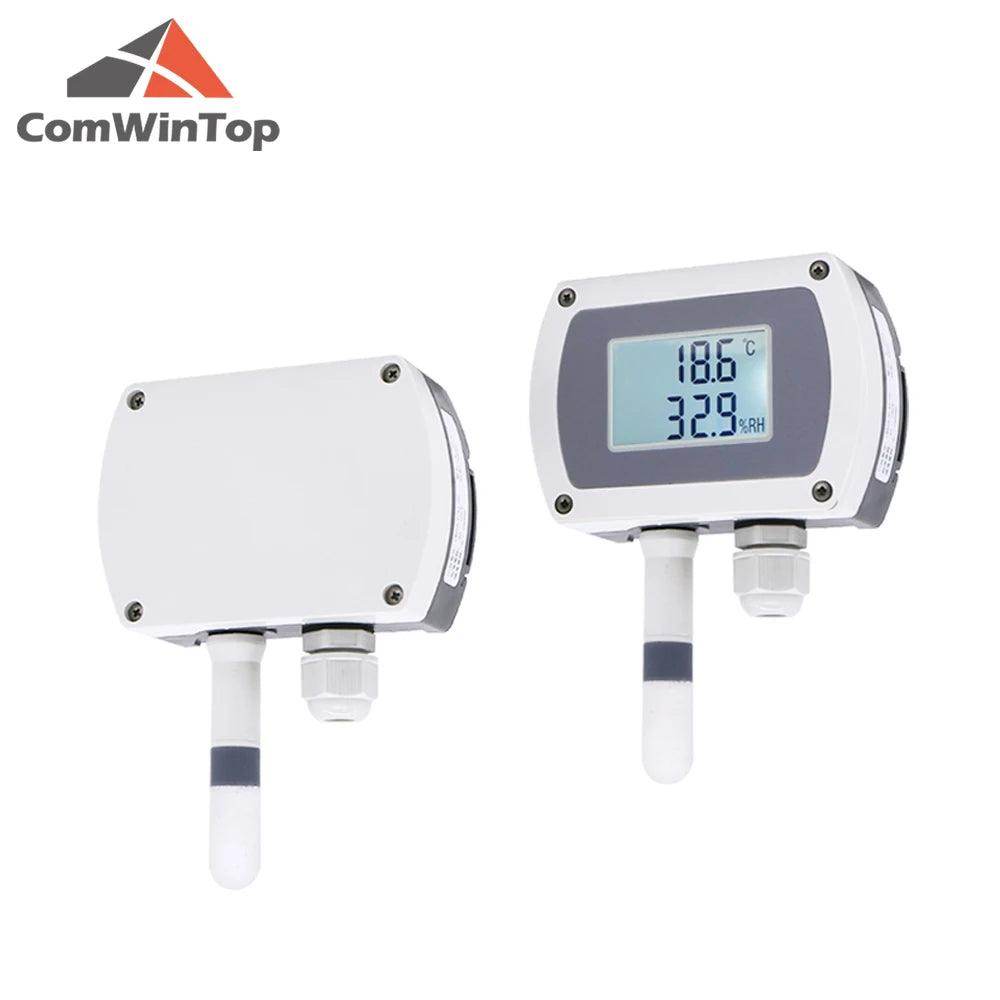

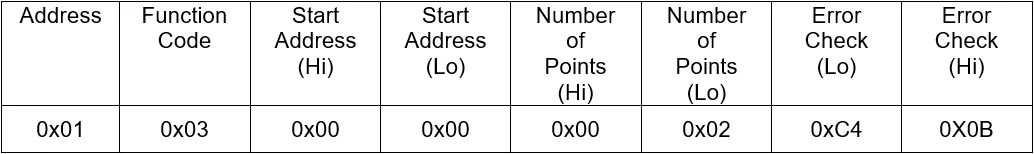

The ComWinTop CWT-XYTH is a wall-mounted temperature and humidity transmitter sensor designed for industrial applications. It provides accurate temperature and humidity readings with 4-20mA and RS485 Modbus RTU outputs. This sensor is a great way to improve your industrial monitoring. The sensor features a built-in display for easy reading and supports track installation. It operates on DC12V to DC24V power. RS485 communication utilizes default parameters of 9600, n, 8, 1, and the default device address is 1. Modbus RTU protocol is used for data transmission. Temperature and humidity calculations are provided for converting output values to actual readings. The device allows for setting slave IDs through the WT-XYTH config tool. To configure the device, connect the sensor to a PC using an RS485 to USB converter. If there is no stock available when you place an order, please contact us to increase the stock. Thank you.

This temperature and humidity sensor is ideal for various applications, including HVAC systems, industrial automation, and environmental monitoring. It provides accurate and reliable data for critical processes. The device features both stable signal, and fast transmission.

Key Features:

• RS485 Modbus RTU communication.
• 4-20mA output.

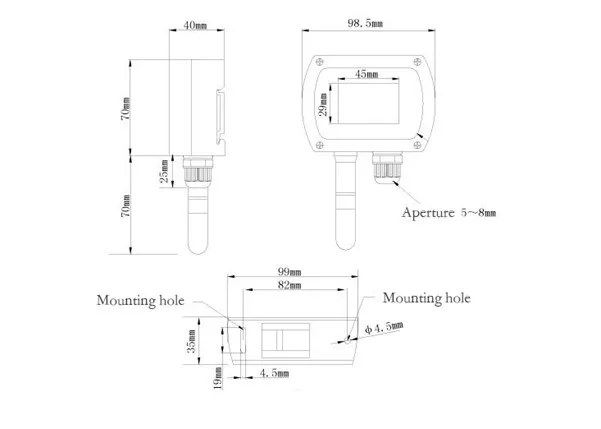

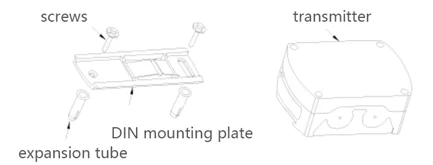

• Wall or track installation.
• Built-in display.
• DC12V-DC24V power input.
• Temperature and humidity calculations provided.
• Configurable slave ID.
• Industrial-grade design.
