7-in-1 Soil Sensor | WiFi/4G, Moisture, Temp, EC, pH, NPK, Data Logger

7-in-1 soil sensor with WiFi or 4G data logger. Measures moisture, temperature, EC, pH, NPK. Built-in battery, solar charging, IP68.

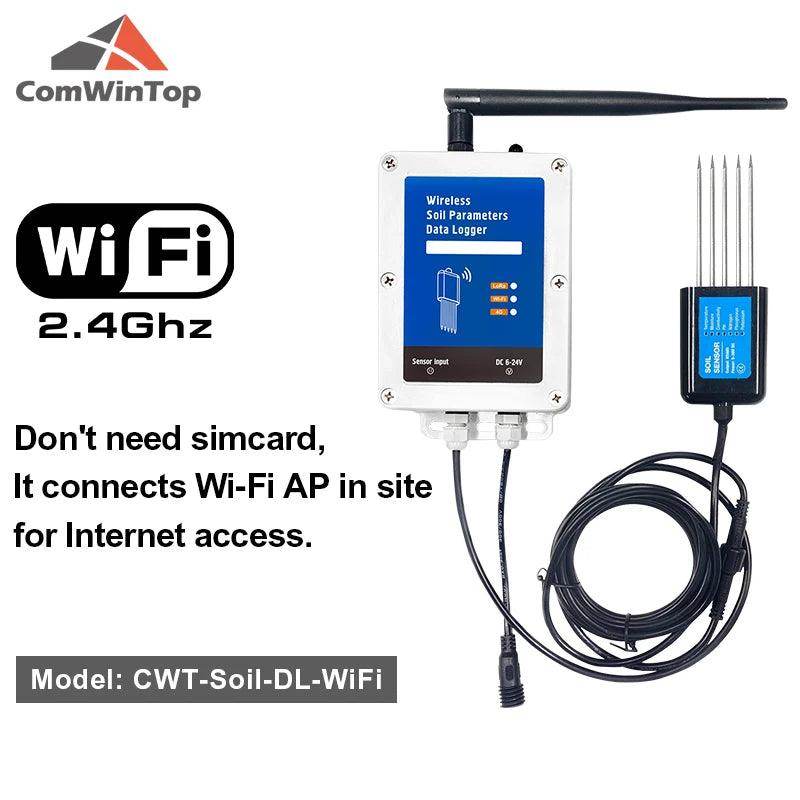

WiFi version is available，It doesn't need simcard
it connects Wi-Fi AP in site for Internet access

Measuring items	Parameters
Temperature	● Measuring range: -40℃-80℃ ● Accuracy: ±0.5℃ (25℃) ● Long-term stability: ≤0.1%℃/y ● Response time: ≤15s
Humidity	● Measuring range: 0-100%RH ● Accuracy: 3% within 0-50%, 5% within 50-100% ● Long-term stability: ≤1%RH/y ● Response time: ≤4s
Conductivity (EC)	● Measuring range: 0-20000us/cm ● Accuracy: 0-10000 us/cm range is ±3%; 10000-20000 us/cm range is ±5% ● Long-term stability: ≤1%uS/cm ● Response time: ≤1s
PH	● Measuring range: 3-9 PH ● Accuracy: ±0.3PH ● Long-term stability: ≤5%/year ● Response time: ≤10S
Nitrogen Phosphorus Potassium	● Measuring range: 1-2999 mg/kg(mg/L) ● Resolution：1 mg/kg(mg/L) ● Response time: ＜1S



System	CPU	STM32
	Working environment	-10℃～55℃，5%～95%RH(non-condensing)
	RTC	Update RTC automatically by NTP or manually
	Memory	128M
	USB	Configuration port, connect PC, provide config software

Power	External Power supply	12-24V DC
	Consumption	850 uA when standby, 160 mA when data upload
	Inside battery	5000mA rechargeable lithium battery
	Charging	Built-in solar charging circuit, directly connect solar panel for charging

Options of 4G frequency		Option1-EU	Option2-AU	Option3-A	Option4-J
	LTE-FDD	B1/3/5/7/8/20/28	B1/2/3/4/5/7/8/28/66	B2/4/12	B1/B3/B8/B18/B19/B26
	LTE-TDD	B38/40/41	B40		B41
	WCDMA	B1/5/8	B1/2/4/5/8	B2/4/5	B1/B6/B8/B19
	GSM/EDGE	B3/8	B2/3/5/8

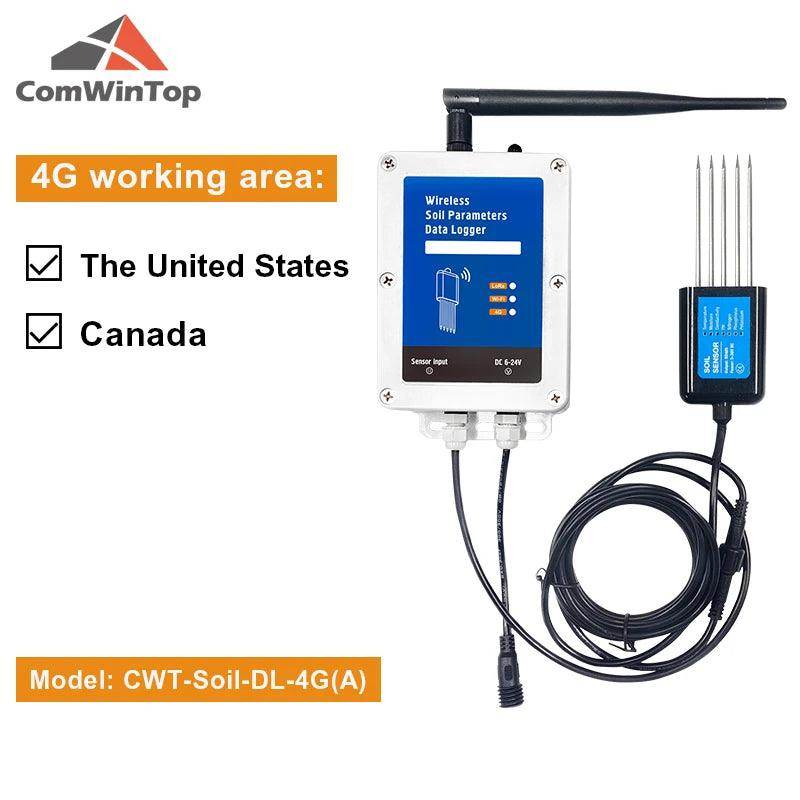

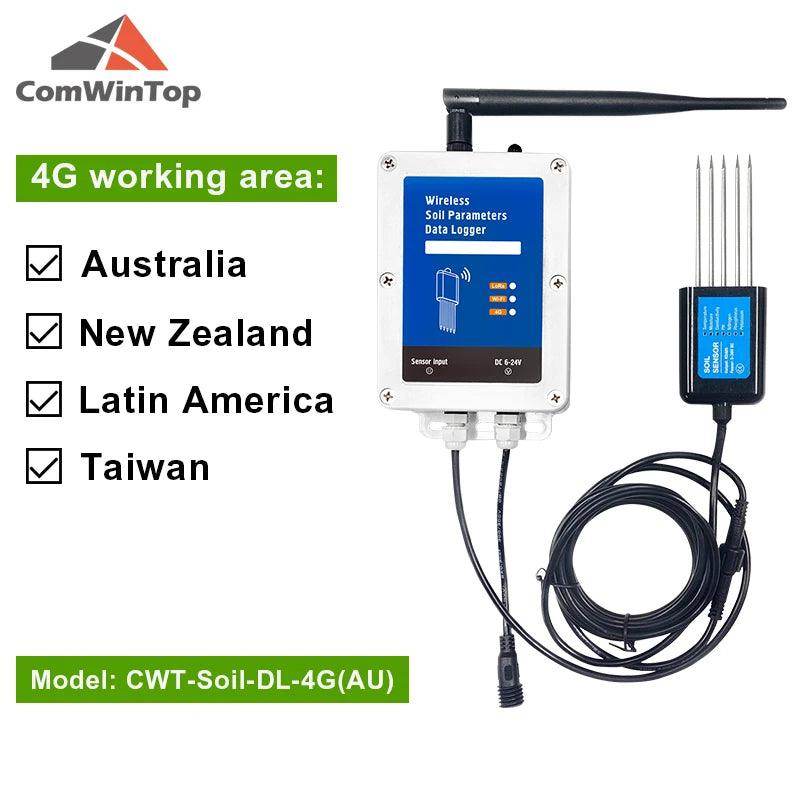

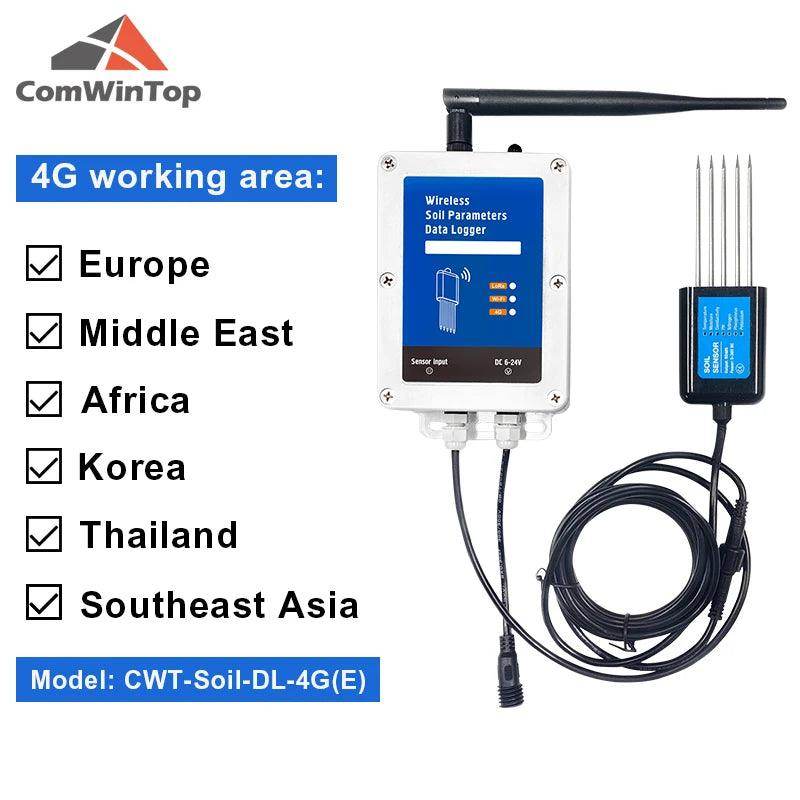

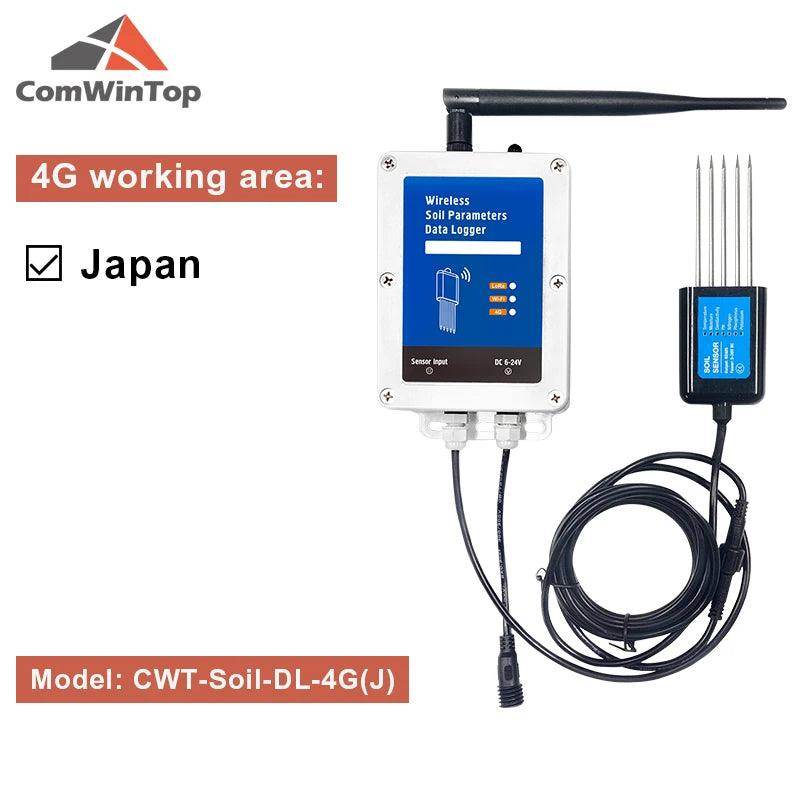

4G working Area		Europe, Middle East, Africa, Korea, Thailand, Southeast Asia	Australia, New Zealand, Latin America, Taiwan	The United States, Canada	Japan
4G Communication		4G	TCP/IP connect servers,
		protocol	CwtIO

Physical	Dimension	4g data logger: 146×90×50mm Soil Sensor: 130×45×15mm
	Weight	440G
	Protection	IP68
	Installation	screw fixing or Portable

Size

Product Description:

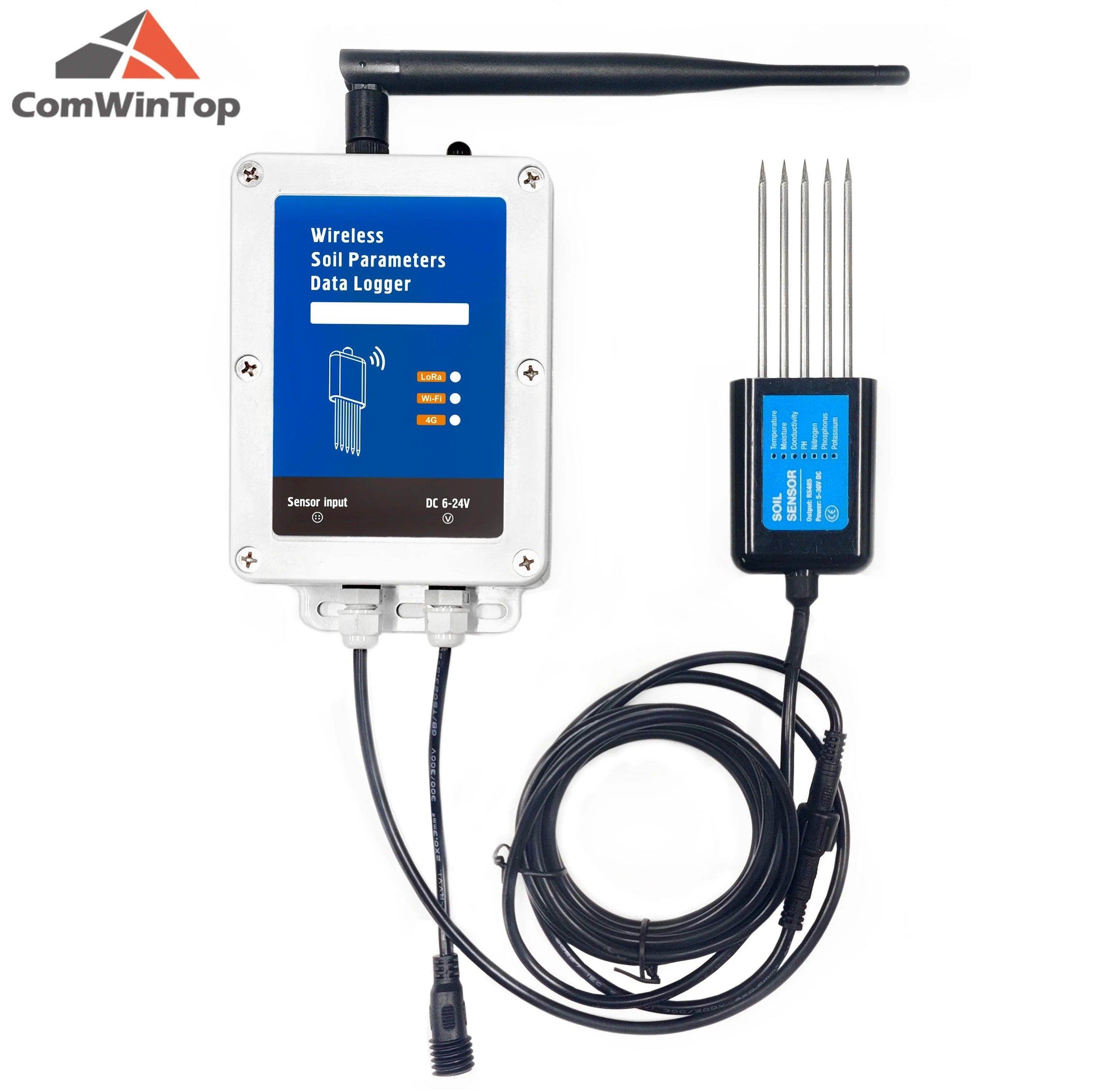

The ComWinTop 7-in-1 Soil Sensor is a comprehensive solution for monitoring soil conditions. This low-consumption sensor measures soil moisture, temperature, humidity, electrical conductivity (EC), pH, and NPK (nitrogen, phosphorus, potassium). Available with WiFi or 4G data logging, it features a built-in 128MB memory for storing data. The sensor's 4G module supports TCP/IP communication and data uploading to the CWT cloud platform, allowing for remote monitoring via website and app. Powered by an 8000mAh rechargeable lithium battery, it can operate for up to 1 year on a single charge (data sent every 30 minutes). Solar charging and IP68 protection ensure reliable outdoor performance.

Key Features:

• 7-in-1 Measurement: Soil moisture, temperature, humidity, EC, pH, NPK.
• WiFi or 4G Data Logging: Remote data access and monitoring.
• 128MB Data Storage: Large capacity for data logging.
• Adjustable Logging Interval: 1 minute to 24 hours.
• 4G Communication: TCP/IP, static IP/domain, CwtIO protocol.
• Adjustable Upload Interval: 1 minute to 24 hours.
• Low Power Consumption: Extended battery life.
• 8000mAh Battery: Built-in rechargeable lithium battery.
• Solar Charging Support: Direct solar panel connection.
• IP68 Protection: Water and dustproof for outdoor use.
• CWT Cloud Platform: Free cloud service for data viewing and export.

Important Notes:

• NPK Measurement Accuracy: The NPK measurement uses a rapid detection method with potential errors. Use with caution for planting reference.
